Your Complete Bottle
Filling Line, Built by
One Manufacturer.
SAM Robotics designs and builds complete bottle-filling plants — cleaning, filling, capping, labelling, sealing, coding, and final packaging, integrated into a single automated line. One supplier, one accountable team, for powders, granules, liquids and pastes across every industry.
9-stage
Complete line
4
Filling technologies
Industry 4.0
SCADA & IoT ready
SS304/316
Contact-part options
Bottle Filling Plant
A bottle filling plant is a complete, automated line that takes an empty bottle through every step — cleaning, filling, capping, labelling, sealing, coding, inspection and final packing — without manual handling between stages. The filling technology is chosen for your product; the rest of the line is integrated around it.
Why it matters: most buyers end up sourcing a filler from one vendor, a capper from another and a labeller from a third — then fight integration problems. SAM designs and builds the entire line, so it operates as a single system from day one.
Built as a system, not a collection.
One supplier, one line
No juggling separate vendors for filler, capper and labeller. SAM designs, builds and integrates the whole line — one quote, one team, one point of accountability.
The right filler for your product
Powder, granule, liquid or paste — SAM fits the correct filling technology (auger, weigher, piston, gravity) so dosing is accurate for what you actually pack.
Less labour, more output
Automatic bottle feeding, no-bottle-no-fill, vision inspection and reject — the line runs with fewer hands and catches defects before they ship.
Built smart, built to last
SS304/316 contact parts, branded PLC and servo, IP55 panels, and SCADA / Industry 4.0 connectivity for recipe storage and remote production monitoring.
Choose Your Filling System
The filling technology is selected for what you’re packing — the rest of the line is built around it:
Powder → Auger filler
Servo-driven dosing for spice, protein, milk, coffee, flour & chemical powders. Optional dust collection.
Granule → Weigher
Linear or multihead weigher for rice, pulses, seeds, sugar, salt, tea & snacks — fast, accurate, gentle.
Liquid → Piston / Gravity
Piston, flow-meter, gravity or overflow fillers for water, juice, oil, syrups, sanitisers & chemical liquids. Drip-free, anti-foam, CIP-ready.
Paste → Servo piston
Servo or pneumatic piston fillers for sauces, ketchup, honey, creams & cosmetics. Optional heating jacket, no-drip nozzles.
Want the full line brochure?
Get the complete spec — every stage, filling options, general tech spec (motor, PLC, panels, conveyor, bottle shapes), warranty terms and secondary-packing options.
The Complete Line, Stage by Stage
Every stage is built and integrated by SAM — bottles move through automatically, no manual handling in between.
Bottle cleaning
Air, water, vacuum or ionised-air rinsing removes dust and contaminants
Bottle feeding
Unscrambler / feeder orients and feeds bottles to the line automatically

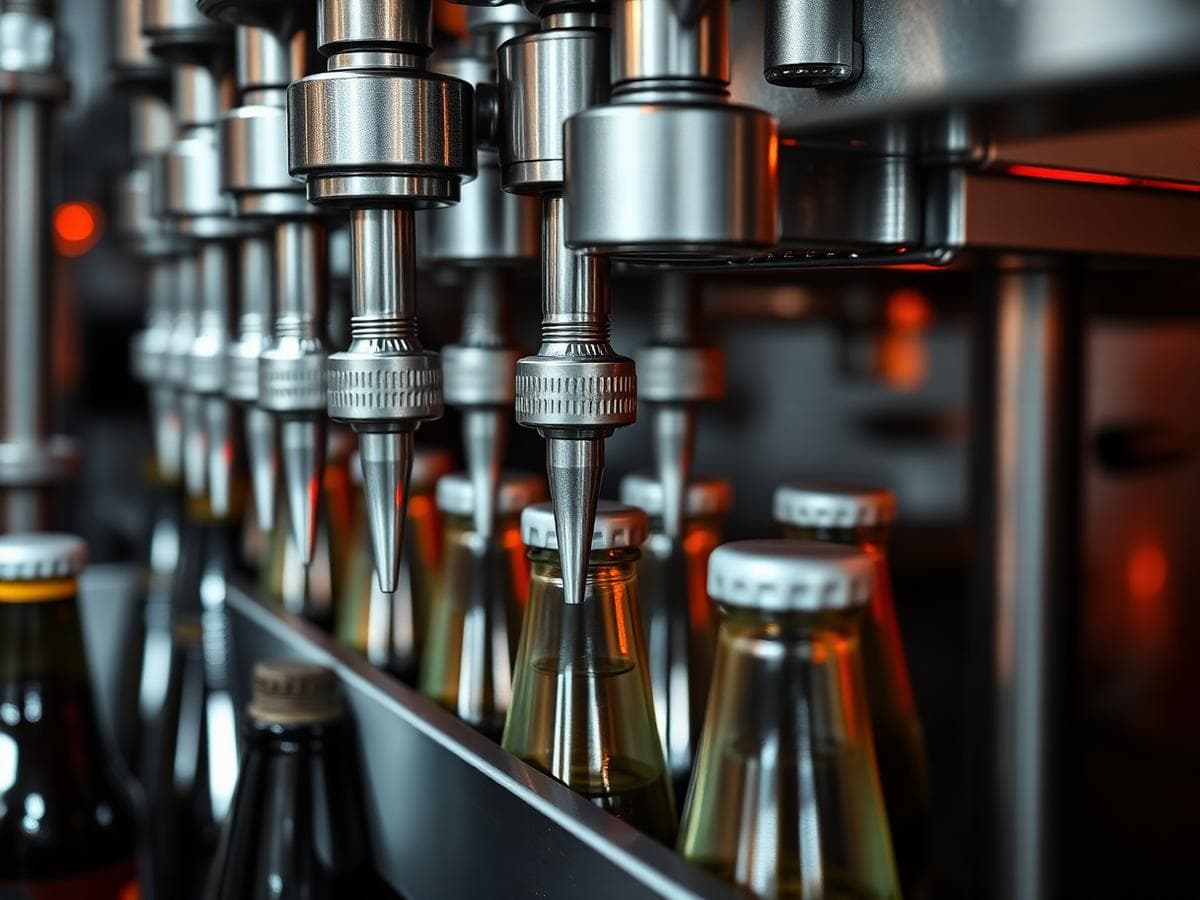

Filling
Auger, weigher, piston or gravity filler — selected for your product
Cap feeding
Cap elevator / vibratory bowl feeder orients and delivers caps
Capping
Screw, ROPP, press or lug capping applied securely to each bottle
Labelling
Wrap-around, front-and-back, top or custom labelling, applied accurately
Induction sealing
Hermetic seal under the cap for freshness, tamper-evidence & shelf life
Batch coding
Inkjet, TTO or laser prints batch, date, MRP, QR & barcode
Vision inspection
Checks fill level, cap, label, code & seal — rejects defects automatically
One line platform, configured for your product.
Industries Served
Food & Beverage
Water, juice, oil, syrups, spices, snacks, grains — hygienic, GMP-compliant lines with CIP-ready liquid fillers.
Chemical & Home Care
Sanitisers, detergents, cleaning liquids and chemical powders — drip-free, anti-foam filling with the right material grade.
Pharma & Cosmetics
Nutraceuticals, creams, gels and cosmetic products — GMP-compliant builds and accurate volumetric/paste filling.
Why Buy From SAM Robotics
Designed around your product
An engineer studies your product, bottle and output, then designs the line — filler, cap type, label format, coding and packing — to suit. Custom configurations for food, pharma and chemical.
We build the filling machines too
The auger and weigher fillers on the line are SAM’s own machines — so the heart of your line comes from the same workshop that builds and supports it.
Configure full automation.
Add only what your line needs — at the filling stage and at end-of-line:
Nitrogen flushing
Displaces oxygen before sealing to extend shelf life
Check weigher
Verifies every filled bottle is within weight tolerance
Vision inspection & reject
Checks fill, cap, label, code & seal; rejects defects

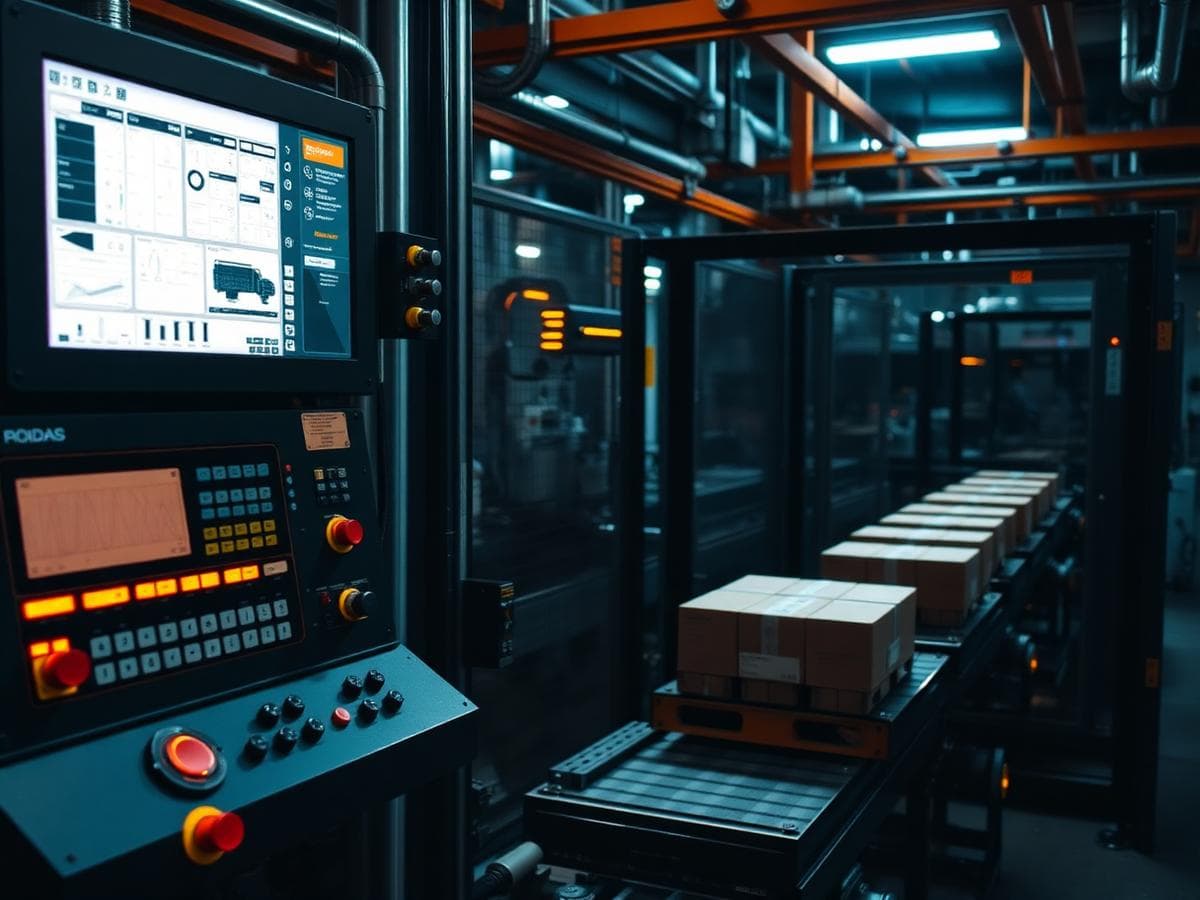

SCADA & Industry 4.0
Recipe storage, remote monitoring, Ethernet production data
Pick & place / palletising
Automatic carton loading and pallet stacking
Shrink wrap & stretch
Bundle bottles and secure pallets for dispatch
Frequently Asked Questions
Get a Quote for Your
Bottle Filling Plant
Tell us your product, bottle and target output. We’ll design a line to suit and quote within 24 hours.
