INDUSTRIAL PACKAGING
MACHINE MANUFACTURER —
BUILT TO LAST,
BACKED FOR LIFE.
SAM Robotics manufactures seven machine lines covering pouch packing, powder filling, bottle filling and industrial blending — all available in standard and fully custom configurations. Every machine is delivered and installed at your site, with operator training and 24×7 after-sales support through our dedicated services.
Our Machines
Pouch & Collar Packing Machines
Multi Head Weigher VFFS Collar Packing Machine
SAM's flagship — high-speed, accurate weighing and sealing for free-flowing granules, snacks, and FMCG products. The right machine when output volume and fill accuracy both matter.
Key Features
- •Multi-head weigher delivers accurate fill weights on every cycle — eliminates product giveaway and short-fill complaints
- •Vertical form-fill-seal with collar former — handles a wide range of pouch sizes and laminated films
- •PLC-controlled with HMI touchscreen — straightforward to operate, minimal operator training required
- •SS304 contact parts — hygienic, food-safe, and easy to clean between product changeovers
- •High-speed output suited to industrial and FMCG production volumes
- •Optional: date coder, nitrogen flushing, automatic film splicer
Applications
Snacks & Namkeens · Extruded Foods · Seeds & Nuts · Frozen Foods · Rice & Grains · FMCG Grocery · Pet Food
Technical Specifications
| Speed / Capacity | 1 to 150 BPM as per product and client speed requirement |
| Fill Range | 1g to 10g, 5g to 100g, 10g to 1000g, 50g to 5000g, 250g to 10kg |
| Pouch Width | Maximum Film Width: 100, 200, 400, 800, 1200, 1500, 2000 mm | Minimum Film Width: 50, 100, 200, 300, 400 mm |
| Power Requirement | 5 KW Approx, 3-phase, 415V, 50Hz |
| Machine Dimensions | 1750 (W) × 1750 (L) × 4000 (H) mm |
| Machine Weight | 1800 kg |
| Contact Parts | SS304 standard / SS316 on request |
| Control System | PLC + HMI touchscreen |
Auger VFFS Collar Packing Machine
Precision servo-driven auger dosing for non-free-flowing powders — consistent fill weights, minimal dust, minimal waste. The correct machine for spices, masala, turmeric, and chemical powders.
Key Features
- •Servo-driven auger filler — precise volumetric dosing for fine powders and granules that won't flow freely
- •Anti-drip nozzle design — prevents product residue on the seal area and reduces reject rate
- •VFFS collar former compatible with a wide range of laminated film types
- •SS304 contact parts with easy-clean hopper — fast, thorough product changeover
- •PLC + HMI control — adjustable fill speed and auger PWM to match different product densities
- •Optional: dust extraction unit, vibration settling pad, nitrogen flush
Applications
Spices & Masala · Tea & Coffee · Turmeric & Chilli Powder · Flour & Starch · Chemical Powder · Pharma Powder · Detergent
Technical Specifications
| Speed / Capacity | 1 to 120 BPM as per product and size of bag |
| Fill Range | 1g to 10g, 5g to 100g, 10g to 1000g, 50g to 5000g, 250g to 10kg |
| Pouch Width | Max Film: 100, 200, 400, 800, 1200, 1500, 2000 mm | Min Film: 50, 100, 200, 300, 400 mm |
| Power Requirement | 6 KW, 3-phase, 415V, 50Hz |
| Machine Dimensions | 1750 (W) × 1750 (L) × 2800 (H) mm |
| Machine Weight | 1200 kgs |
| Contact Parts | SS304 standard / SS316 on request |
| Control System | PLC + HMI touchscreen |
Bottle Filling Plants
Granules & Powder Bottle Filling Plant
Complete turnkey bottling line — filling, capping, labelling, date coding, and final packaging in one integrated flow. One supplier, one point of responsibility, zero integration headaches.
Key Features
- •Turnkey line: filling → capping → labelling → date coding → final packaging
- •Multi-head weigher for granules or auger filler for powders — matched to your specific product
- •Automatic capping: screw cap, press-on, or ROPP configurations
- •Self-adhesive labelling — front, back, and wrap-around options
- •Inline inkjet or hot-stamp date and batch coder
- •SS304/SS316 contact parts — GMP-compliant construction available for pharma applications
- •Handles round, square, and oval bottle formats
Applications
Pharma & Nutraceuticals · Spice Blends · Chemical Powder · FMCG · Beverages · Cosmetics · Agri Inputs
Technical Specifications
| Speed / Capacity | 2 to 60 Bottle Per Minute, 120 BPM available under custom build |
| Fill Range | 1g to 10g, 5g to 100g, 10g to 1000g, 50g to 5000g, 250g to 10kg, 5 kg to 25kg, 10kg to 100kg ( Barrel Filling ) |
| Bottle Format | Round, Square, Hexagon, Octagon, Rectangle, Oval, Barrel, Tin, Carton Box, Cups, Trays |
| Power Requirement | 3-phase, 415V, 50Hz |
| Machine Dimensions | Depending on client requirement |
| Machine Weight | Depending on client requirement |
| Contact Parts | SS304 standard / SS316 pharma grade on request |
| Control System | PLC + HMI touchscreen |
Blending & Mixing Machines
Octagonal Blender
Gentle tumbling action for fragile granules, coated tablets, and sensitive products — uniform mixing without particle damage or attrition.
Key Features
- •Octagonal drum geometry — thorough, consistent mixing with minimal dead zones
- •Gentle tumbling action — ideal for coated tablets and granules that can't tolerate impact
- •SS304/SS316 construction — GMP-compliant, mirror-polished interior Ra ≤ 0.4µm available
- •Easy-open discharge valve — fast, complete cleanout between batches
- •Available with intensifier bar for enhanced fine-powder blending
- •Variable speed drive — adjustable RPM to match product sensitivity
Applications
Pharma Granules & Tablets · Nutraceuticals · Spice Blending · Tablet Coating · Food Supplements
Technical Specifications
| Capacity Range | 50L – 3,000L (custom sizes available) |
| Speed | 1 to 1440 RPM and above as per client requirements |
| Loading Height | Depending on client requirement, height can be changed in design or a feeding mechanism can be provided |
| Drive | Variable speed motor with gearbox |
| Material | SS304 standard / SS316 pharma grade |
| Internal Finish | Mirror polish Ra ≤ 0.4µm / Satin food grade available |

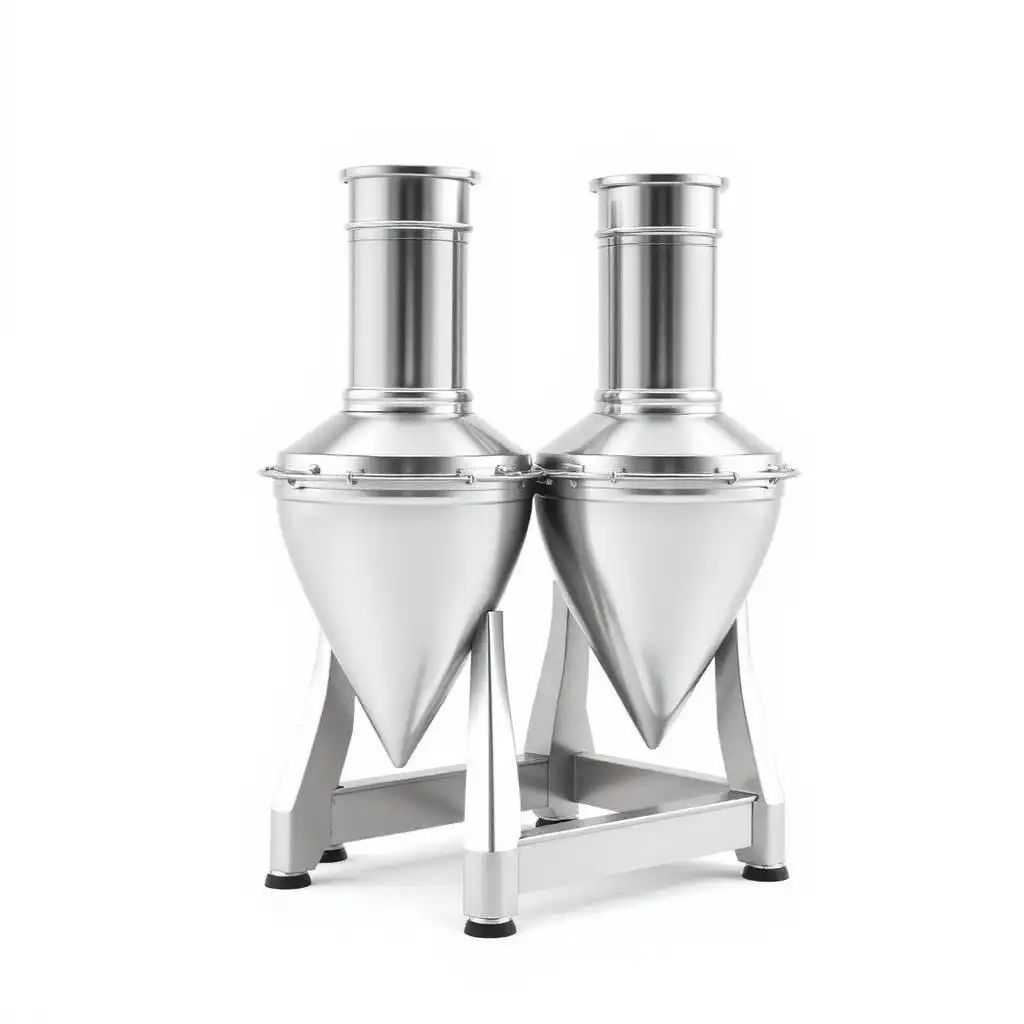

Double Cone Blender
High-efficiency dry powder blending in a clean, low-maintenance geometry — the workhorse of pharma and food powder mixing the world over.
Key Features
- •Double cone geometry — complete material tumbling, no product stagnation or segregation
- •Ideal for dry powders and free-flowing granules that need uniform, repeatable blending
- •GMP-compliant — mirror-polished interior Ra ≤ 0.4µm available
- •Top charging, bottom gravity discharge — minimal residue after each batch
- •Available with sampling valve, intensifier bar, and vacuum charging
- •Compact footprint — lower headroom requirement than octagonal blenders
Applications
Pharma Powder Blending · Tea & Coffee · Spices & Masala · Chemical Powder · Food Ingredients · Nutraceuticals
Technical Specifications
| Capacity Range | 50L – 5,000L (custom sizes available) |
| Working Capacity | 50 to 60% of Total Volume |
| Speed | 1 to 1440 RPM and above as per client requirement |
| Drive | Variable speed motor with gearbox |
| Material | SS304 standard / SS316 pharma grade |
| Internal Finish | Mirror polish Ra ≤ 0.4µm / Satin food grade available |
Ribbon Blender
Continuous inner-outer ribbon agitator for high-volume blending of powders, semi-solids, and pastes — fast cycle times and complete homogeneity across large batches.
Key Features
- •Inner and outer ribbon agitator — counter-current flow delivers complete, fast homogeneity
- •Handles high-volume, high-viscosity products including pastes and semi-solids
- •Horizontal trough design — easy loading, fast bottom-valve discharge with minimal residue
- •SS304/SS316 or MS with epoxy lining — food-grade or chemical-resistant options
- •Heating/cooling jacket available for temperature-sensitive blending
- •Variable speed drive — handles light spice powders through to heavy paste formulations
Applications
Masala & Spice Blending · Flour & Bakery Mixes · Animal Feed · Chemical Blending · Cosmetics · Detergent Powder · Fertiliser
Technical Specifications
| Capacity Range | 100L – 10,000L (custom sizes available) |
| Ribbon Speed | 1 to 1440 RPM & above as per client requirement |
| Drive | Variable speed motor with gearbox |
| Material | SS304 / SS316 / MS with epoxy lining |
| Discharge | Bottom valve — manual or pneumatic butterfly valve |
| Options | Heating/cooling jacket · CIP nozzles · Sampling valve |
For Startups & Growing Businesses

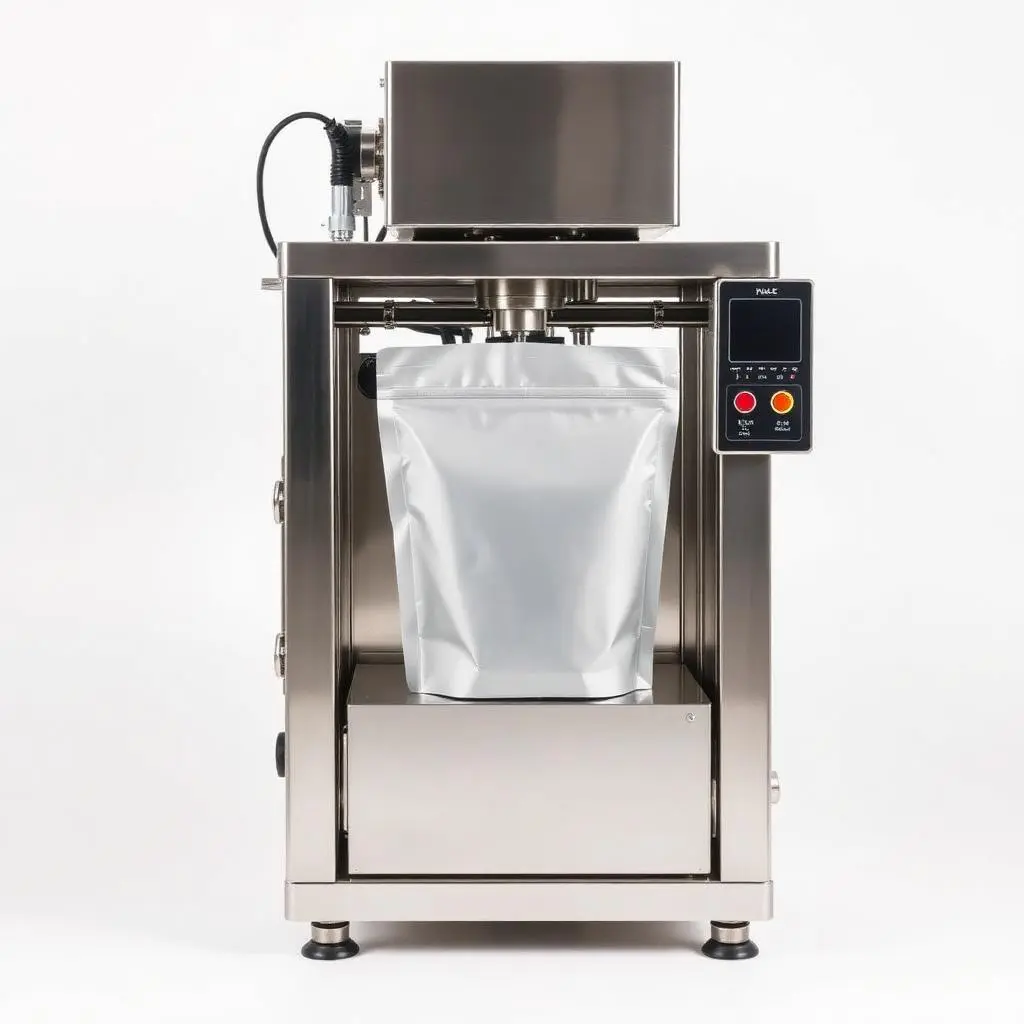

Automatic Packing Machine for Startups — Basic Version
Industrial-grade automatic packing at a startup-friendly investment. Built on the same SAM quality foundation as our full industrial range — a machine you grow into, not one you replace.
Key Features
- •Compact footprint — designed for small factory floors, home-based production units, and MSME facilities
- •Automatic film feeding, forming, filling, and sealing — minimal manual intervention required
- •PLC-controlled — easy to operate with basic training, no specialist operator needed on-site
- •Built on the same components and quality standards as SAM's full industrial machines
- •Upgradeable — expand the automation level as your production volumes and business grow
- •Also available in semi-automatic version for a lower entry investment
Applications
Home-Based Food Businesses · Food Startups · Small FMCG Producers · Cottage Industry · MSMEs · New Product Launches
Technical Specifications
| Speed / Capacity | 1 to 30 BPM maximum |
| Fill Range | 1 gram to 2000 grams maximum |
| Pouch Width | 40 mm minimum size to 400 mm maximum |
| Power Requirement | Single-phase or 3-phase, available in both voltages |
| Machine Dimensions | As per client requirement, space in the factory they plan |
| Machine Weight | 300 to 1000 kgs based on models |
| Contact Parts | SS304 standard |
| Control System | PLC + basic HMI |
CAN'T FIND EXACTLY
WHAT YOU NEED?
Good. Most of our best machines started that way.
Most machines SAM Robotics builds today are custom-engineered to a client's specific product, production volume and facility layout. If your product doesn't fit a standard catalogue — or if you've tried a standard machine and it hasn't performed — talk to us. We visit your factory, understand the problem firsthand, and build a machine that solves it.
HOW CUSTOM BUILDS WORK
You share your problem — product type, production volume, current challenge and budget range.
SAM sends an engineer to visit your factory. We assess product, space and workflow firsthand — not over a phone call.
Our engineering team prepares a basic design and cost estimate based on what we've seen.
If the budget needs adjusting, the engineer revisits — automating only where it delivers the best ROI.
We build, test thoroughly at our Coimbatore facility, then deliver with full installation and operator training at your site.
WHAT SAM HAS CUSTOM-BUILT
Custom multi-head weigher + VFFS lines for irregular-shaped snack products
Hybrid blending + packing lines combining mixing and pouch filling in one integrated flow
Modified bottle filling plants for non-standard container shapes and closures
PLC automation retrofits on existing third-party machinery — SAM's core panel wiring capability
CE-marked machines built to export-market specifications for Gulf and European buyers
Describe your requirement and we'll get back within 24 hours.
Why Manufacturers Choose SAM
The packing machinery market has many options. Here is what sets SAM apart.
Quality-Grade Components
Every machine is built with industrial-grade components — Siemens PLCs, Festo pneumatics, SS304 contact parts. The same quality you’d expect from premium manufacturers.
Genuine Custom Engineering
As a custom packing machine manufacturer, SAM builds to your exact specifications. We visit your factory, understand your product, and engineer the solution — not a catalogue item.
End-to-End Installation & Training
From factory loading to civil prep, installation, and operator training at your site — we stay until the machine runs. Export orders get a full week on-site.
Fast Spare Parts. 24×7 Support
Most spare parts delivered within 1 day. Critical parts within 1 week. 24×7 video call support resolves most issues the same day — anywhere in India or overseas.
Export-Ready from South India
ISO and CE certified. IE Code registered. As a packaging machine manufacturer in South India with full export capability, SAM ships to 25+ countries — UAE, UK, USA, Germany, Australia, and more.
AMC & Long-Term Partnership
Annual Maintenance Contracts available. Spare parts stocked by part number. SAM is not a box-shifter — we build relationships that last as long as the machine does.
Know Which
Machine You Need?
Tell us your product and production volume. We'll confirm the right machine and quote within 24 hours.
