High-Capacity, Counter
Current Blending —
SAM
Ribbon Blender

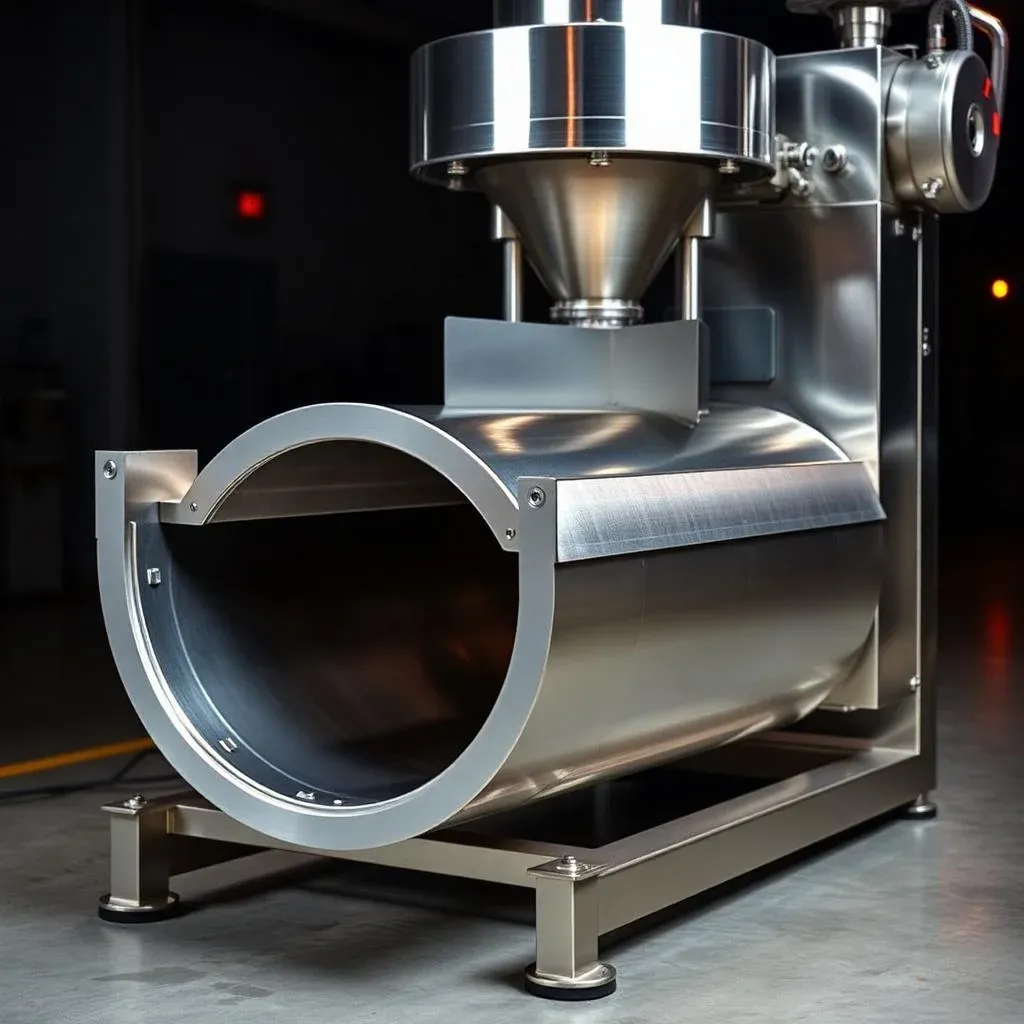

The industrial workhorse for high-volume powder and paste blending. SAM's ribbon blenders use precision-engineered dual helical ribbons to deliver rapid homogeneity across batches up to 10,000 Litres. Built for the toughest industrial shifts in food, chemical, and pharma sectors.
Rapid
High Homogeneity
10k L
Batch Capacity
SS316
Material Grade
Paste/Powder
Versatility
What Is a Ribbon Blender?

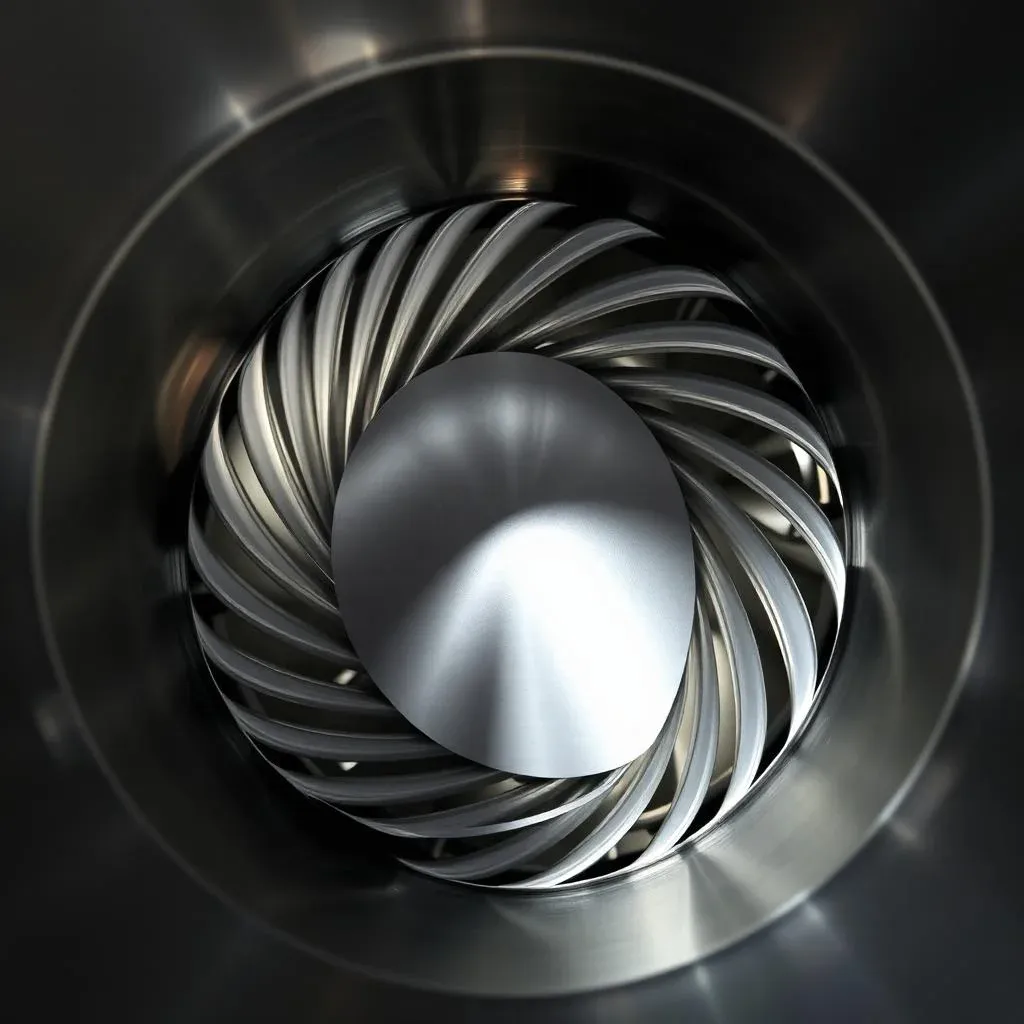

A ribbon blender consists of a horizontal U-shaped trough and a specifically fabricated ribbon agitator. The agitator features inner and outer helical ribbons that move material in counter-current directions — outer ribbons move material toward the center, while inner ribbons move it toward the ends.
Why it matters: This constant, high-volume axial and radial movement achieves uniform blending for powders, granules, and pastes significantly faster than gravity-based tumbling mixers. It's the standard for production lines where throughput and consistency are non-negotiable.
Why Manufacturers Choose This Blender
Fast, uniform homogeneity
The dual helical ribbon agitator moves material in counter-current directions, achieving complete homogeneity faster than any other batch mixing method — even for materials with varying bulk densities.
Handles powders and pastes
A heavy-duty ribbon blender India's chemical and food processing industries trust for both dry powders and high-viscosity semi-solids. One machine, many batch types.
Fast, complete discharge
The horizontal U-shaped trough combined with a precision-fitted bottom discharge valve ensures minimal residue between batches, reducing wastage and cross-contamination risks.
Temperature controlled blending
Available with optional heating or cooling jackets for products that require temperature regulation during the mixing cycle — critical for food sauces and chemical reactions.
Specifications at a Glance
| Machine Type | Ribbon Blender (Horizontal U-trough mixer) |
| Mixing Mechanism | Inner and outer dual-helical ribbon agitator |
| Capacity Range | 100 Litres to 10,000 Litres (Working Volume) |
| Contact Parts | SS304, SS316, or MS with food-grade epoxy lining |
| Discharge Type | Manual or Pneumatic Butterfly/Sliding Valve |
| Drive System | TEFC Motor with heavy-duty Planetary/Helical Gearbox |
| Optional Features | Jacketed trough, Liquid spray bar, CIP nozzles, Vacuum loading |
What This Machine Blends
Ideal for rapid batch mixing of dry powders, granules, and viscous formulations:
Related to This Product
Downstream Packing
Move your uniform blend directly into retail packaging with SAM's production Auger VFFS or Multihead Weigher VFFS lines.
Gentle Blending
If your product is heat-sensitive or fragile (like tea or granules), explore our gentle tumbling blenders.
Engineering Services
Custom trough design, agitator fabrication, and on-site integration for your full industrial blending facility.
Visit Services Centre
Why Buy From SAM Robotics
Precision Ribbon Fabrication
We fabricate our ribbon agitators to strict clearances, ensuring zero dead zones at the trough base — critical for batch consistency and hygiene.
Integrated 'Blend to Pack' lines
SAM is the only manufacturer that builds both the blender and the downstream packing line in one workshop. One point of accountability for your whole facility.
Options & configurations
Configure the ribbon blender to your production volume and process needs:
Heating/Cooling Jacket
Regulate product temperature during the mix — suitable for hot-melt or cooling applications.
Liquid Spray Bar
Add liquid components (oils, fragrances, binders) evenly across the dry batch during the mix.
GMP-Compliant Finish
Mirror-polished internal surfaces (Ra ≤ 0.4µm) and sanitary seal designs.
Vacuum Loading
Dust-free material charging directly from bins into the blender trough.
Heavy-Duty Agitator
Reinforced ribbon and shaft design for high-density products and heavy pastes.
Explosion Proof
Flame-proof motor and electricals for hazardous chemical environments.
